Truck Cranes 12,000 – 19,000 GVW

• HIAB T-CLX 009



  Lifting Capacity

  870 kg @ 1.1 m / 1,918 lb @ 3 ft 8 in
  (T-CLX 009-1)

  340 kg @ 2.7 m / 750 lb @ 8 ft 11 in
  (T-CLX 009-2)

  Maximum Hydraulic Outreach

  2.8 m / 9 ft 2 in - horizontal (T-CLX 009-2)

• Learn More About TheHIAB T-CLX 018 - A LIGHTWEIGHT THAT PERFORMS LIKE A HEAVYWEIGHT

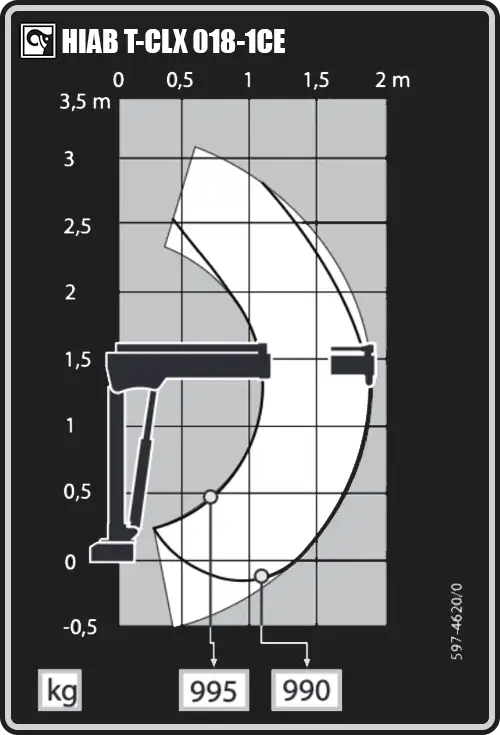

  LOAD CHART

  HIAB T-CLX
  018-1CE





  HIAB X-HiPRO 358 E-5 Jib 100X-5



• HIAB T-HiDuo 018



  Lifting Capacity

  1,700 kg @ 1.1 m / 3,748 lb @ 3 ft 8 in
  (T-HiDuo 018-1)

  450 kg @ 4.1 m / 992 lb @ 13 ft 6 in
  (T-HiDuo 018-3)

  Maximum Hydraulic Outreach

  4.2 m / 13 ft 10 in - horizontal (T-HiDuo 018-3)

• HIAB T-CLX 023



  Lifting Capacity

  1,620 kg @ 1.5 m / 3,572 lb @ 4 ft 11 in
  (T-CLX 023-2)

  520 kg @ 4.4 m / 1,146 lb @ 14 ft 5 in
  (T-CLX 023-3)

  Maximum Hydraulic Outreach

  4.4 m / 14 ft 5 in - horizontal (T-CLX 023-3)

• HIAB T-HiDuo 023



  Lifting Capacity

  1,620 kg @ 1.5 m / 3,572 lb @ 4 ft 11 in
  (T-HiDuo 023-2)

  520 kg @ 4.4 m / 1,146 lb @ 14 ft 5 in
  (T-HiDuo 023-3)

  Maximum Hydraulic Outreach

  4.4 m / 14 ft 5 in - horizontal (T-HiDuo 023-3)

• HIAB 026 T



  Lifting Capacity

  1,820 kg @ 1.4 m
  550 kg @ 4.6 m

  Maximum Hydraulic Outreach

  4.6 m

• HIAB T-CLX 029



  Lifting Capacity

  1,860 kg @ 1.5 m / 4,100 lb @ 4 ft 11 in
  (T-CLX 029-2)

  440 kg @ 5.5 m / 970 lb @ 18 ft
  (T-CLX 029-4)

  Maximum Hydraulic Outreach

  5.5 m / 18 ft - horizontal (T-CLX 029-4)

• HIAB T-HiDuo 029



  Lifting Capacity

  1,860 kg @ 1.5 m / 4,100 lb @ 4 ft 11 in
  (T-HiDuo 029-2)

  440 kg @ 5.5 m / 970 lb @ 18 ft
  (T-HiDuo 029-4)

  Maximum Hydraulic Outreach

  5.5 m / 18 ft - horizontal (T-HiDuo 029-4)

• HIAB 033 T



  Lifting Capacity

  2,310 kg @ 1.5 m
  670 kg @ 4.8 m

  Maximum Hydraulic Outreach

  4.8 m

• HIAB XS 033



  Lifting Capacity

  780 kg @ 3.6 m
  260 kg @ 9.2 m

  Maximum Hydraulic Outreach

  9.4 m

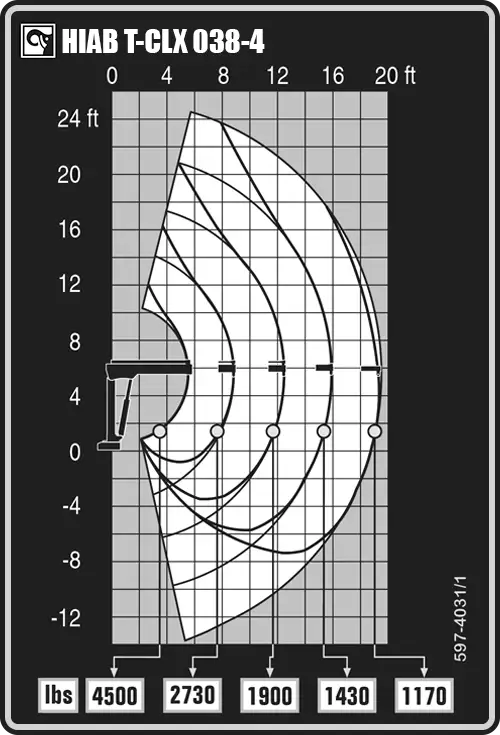

• HIAB T-CLX 038



  Lifting Capacity

  2,360 kg @ 1.5 m / 5,203 lb @ 4 ft 11 in
  (T-CLX 038-2)

  530 kg @ 6 m / 1,168 lb @ 19 ft 8 in
  (T-CLX 038-4)

  Maximum Hydraulic Outreach

  6 m / 19 ft 8 in - horizontal (T-CLX 038-4)

• HIAB T-HiDuo 038



  Lifting Capacity

  2,360 kg @ 1.5 m / 5,203 lb @ 4 ft 11 in
  (T-HiDuo 038-2)

  530 kg @ 6 m / 1,168 lb @ 19 ft 8 in
  (T-HiDuo 038-4)

  Maximum Hydraulic Outreach

  6 m / 19 ft 8 in - horizontal (T-HiDuo 038-4)

• HIAB XS 044



  Lifting Capacity

  980 kg @ 3.5 m
  330 kg @ 9.1 m

  Maximum Hydraulic Outreach

  9.4 m

• HIAB XS 055



  Lifting Capacity

  1,420 kg @ 3.1 m
  310 kg @ 11.3 m

  Maximum Hydraulic Outreach

  11.4 m

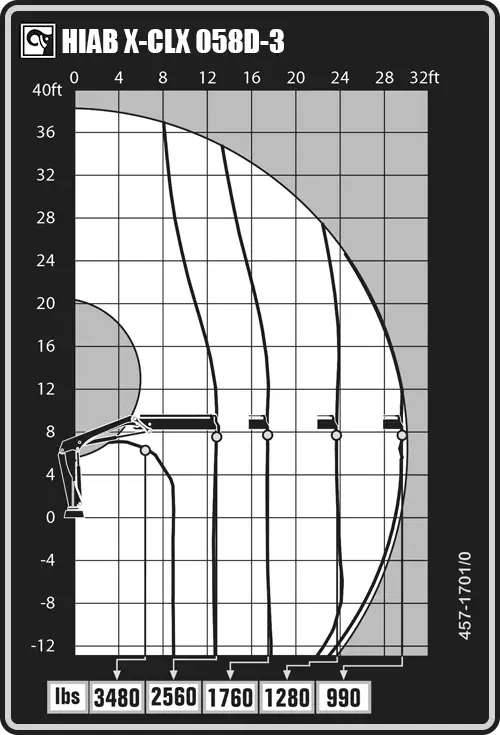

• HIAB X-CLX 058



  Lifting Capacity

  2,180 kg (4,806 lb) @ 2.3 m (7ft 7in)
  310 kg (684 lb)  @ 11.3 m (37 ft)

  Maximum Hydraulic Outreach

  11.3 m (37 ft)

• Learn More About TheHIAB X-HiDUO 062 - ALL YOU EXPECT – AND THEN SOME



  LOAD CHART

  HIAB X-HiDUO
  062-4







• HIAB X-CLX 068



  Lifting Capacity

  2,640 kg (5,820 lb) @ 2.3 m (7 ft 7 in)
  400 kg (882 lb)  @ 11.3 m (37 ft)

  Maximum Hydraulic Outreach

  11.3 m (37 ft)

• HIAB X-CLX 078



  Lifting Capacity

  2,920 kg (6,438 lb) @ 2.4 m (7 ft 11 in)
  310 kg (684 lb) @ 11.3 m (37 ft)

  Maximum Hydraulic Outreach

  11.3 m (37 ft)
